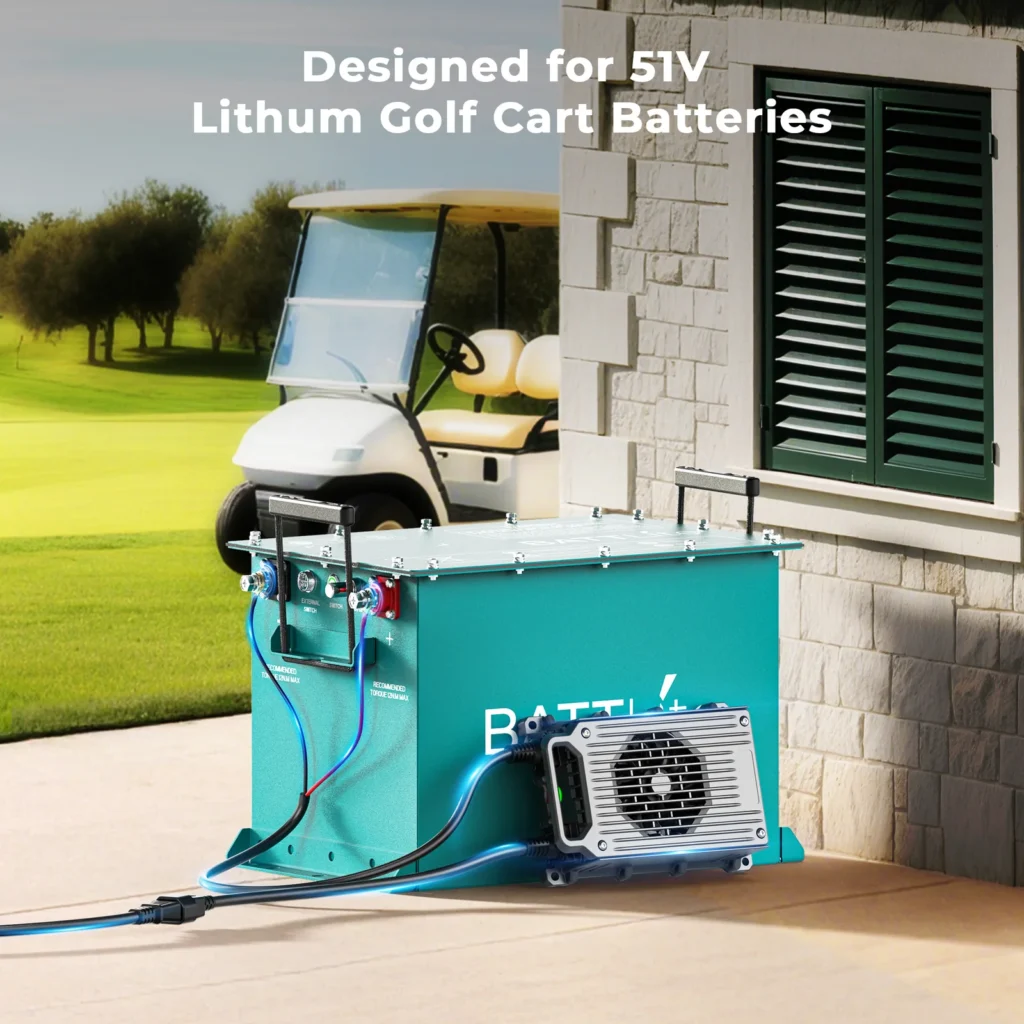

Specifically engineered for golf cart batteries, this charger delivers the perfect voltage and current for your BATTLite 51V 100Ah battery. Its customized charging parameters provide an optimal charge, extending battery life and ensuring peak performance.

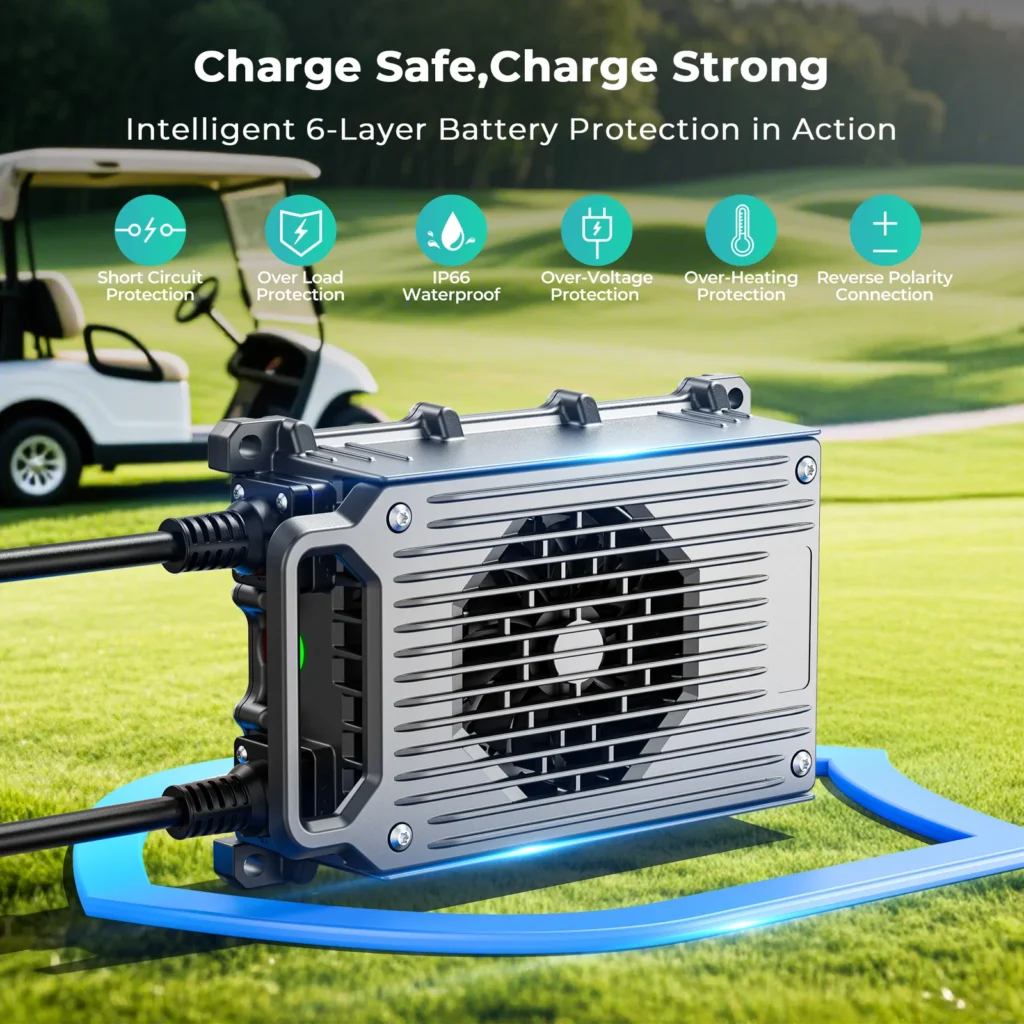

This golf cart battery charger is built with comprehensive safety features, including Short-Circuit, Over-Voltage, Over-Current, Over-Temperature, and Reverse Polarity Protection. With an IP66 waterproof rating, it ensures complete safety during charging and protects the unit from damage.

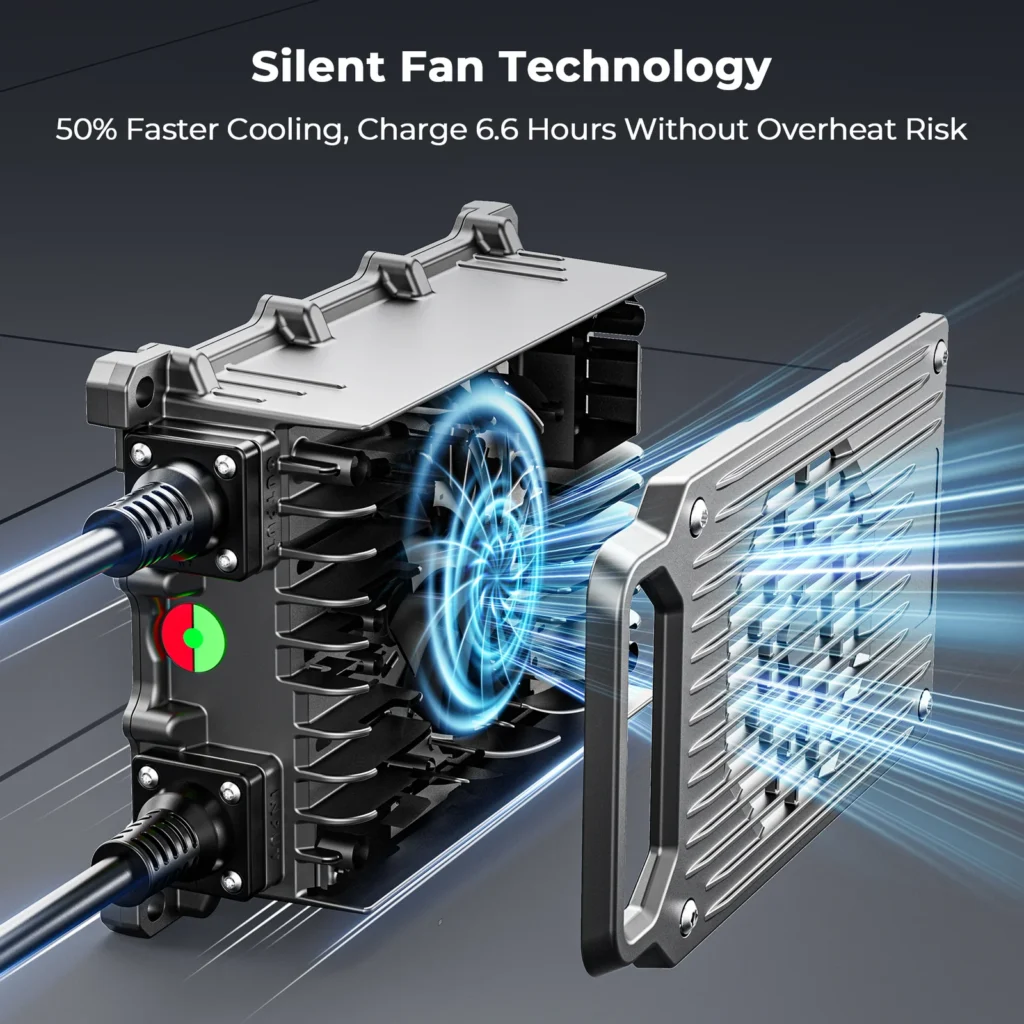

Equipped with a powerful internal cooling fan, this battery charger effectively dissipates heat during long charging cycles. Despite its high performance, the fan operates with whisper-quiet efficiency, preventing noise disruption.

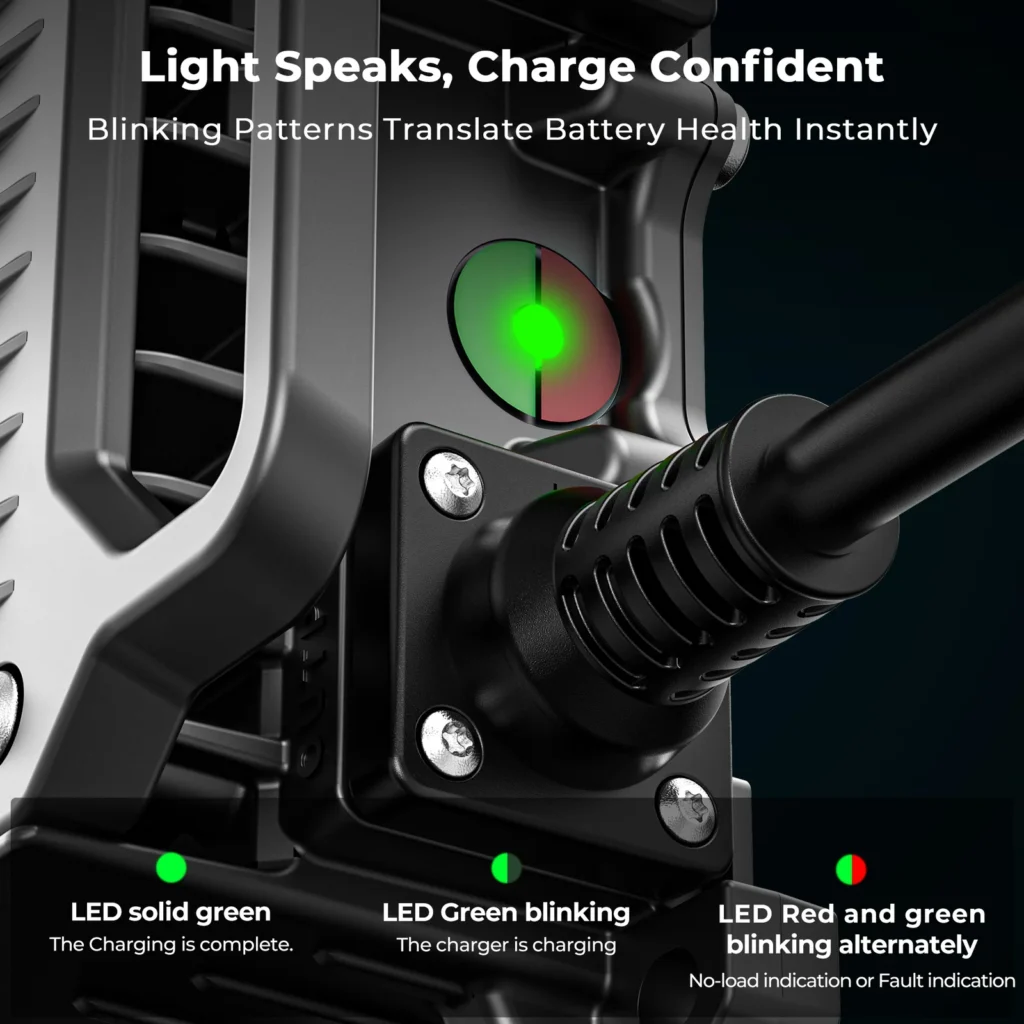

The LED lights clearly show the charging status:
1. Charging: Green light flickers.
2. Full: Green light is solid.
3. Empty/No Load: Green and red lights flash alternately.
If the indicator shows a pattern not described above, please contact our customer service.

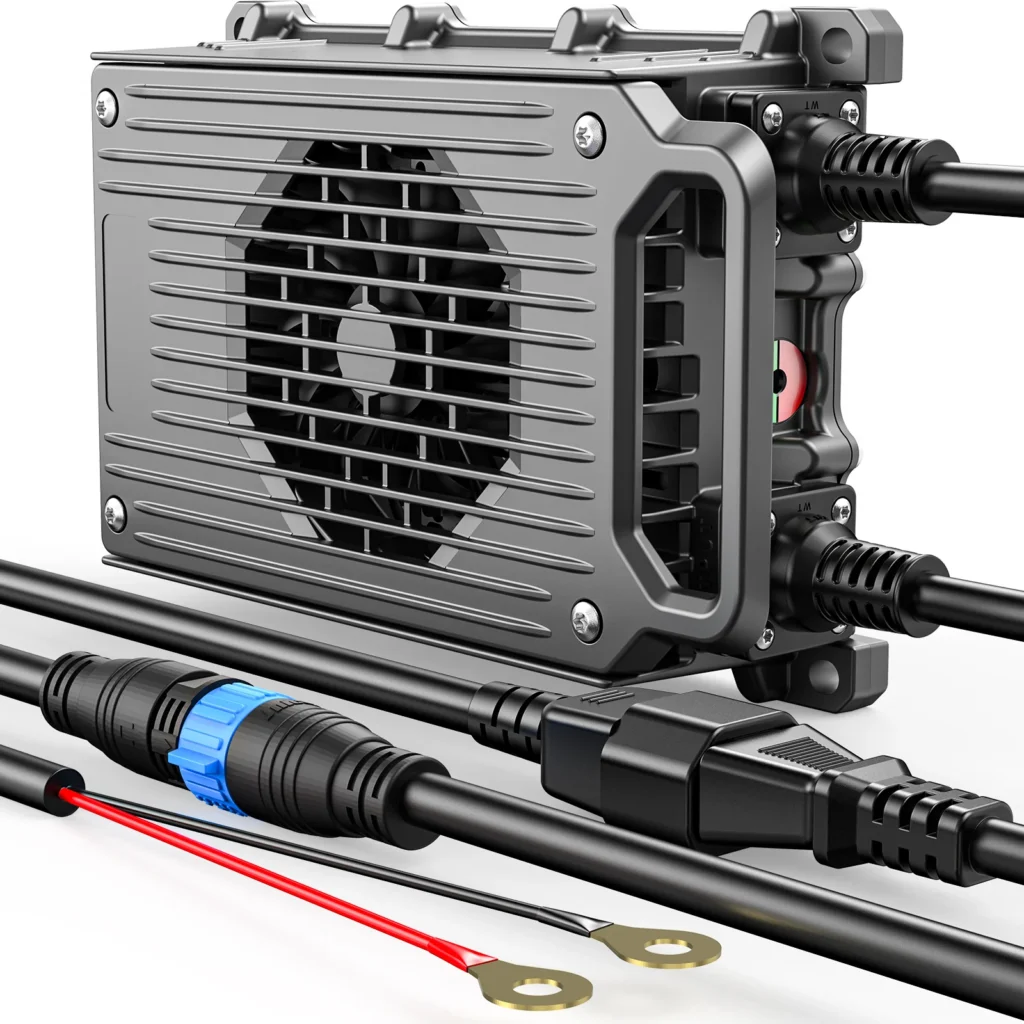

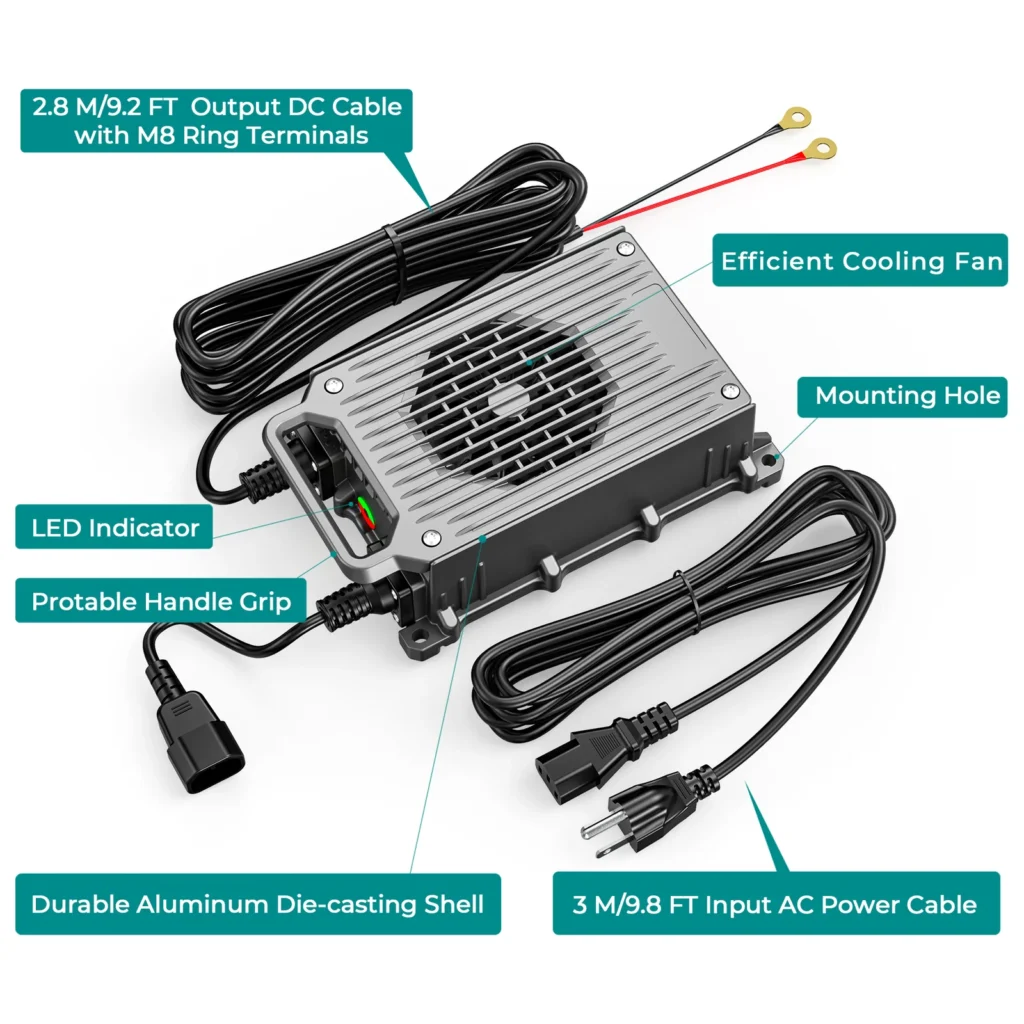

1. Output DC Cable (2.8M / 9.2FT) with M8 Ring Terminals
2. Efficient Cooling Fan
3. LED Indicator
4. Portable Handle
5. Mounting Holes
6. Durable Aluminum Die-Cast Shell
7. Input AC Power Cable (3M / 9.8FT)
8. User Manual
Model
BATCHG4815/BATCHG4815T
Rated input voltage range
100-240VAC
Input Current
＜9A
Maximum output voltage
58.4Vdc
Maximum output current
15A
Maximum Output Power
840W
LiFePO4 Battery Series Configuration
16S
Ingress protection
IP67
Dimensions L×W×H (mm)
240*143*71.5
Operating temperature
-35°C to 65°C
Storage Temperature
40℃～+95℃
Operating humidity
0～95%
Ingress Rating
IP67
Cooling Method
Air cooling
Using the 48-15A charger, the BATTLite golf car battery can be fully charged in just 6.6 hours.

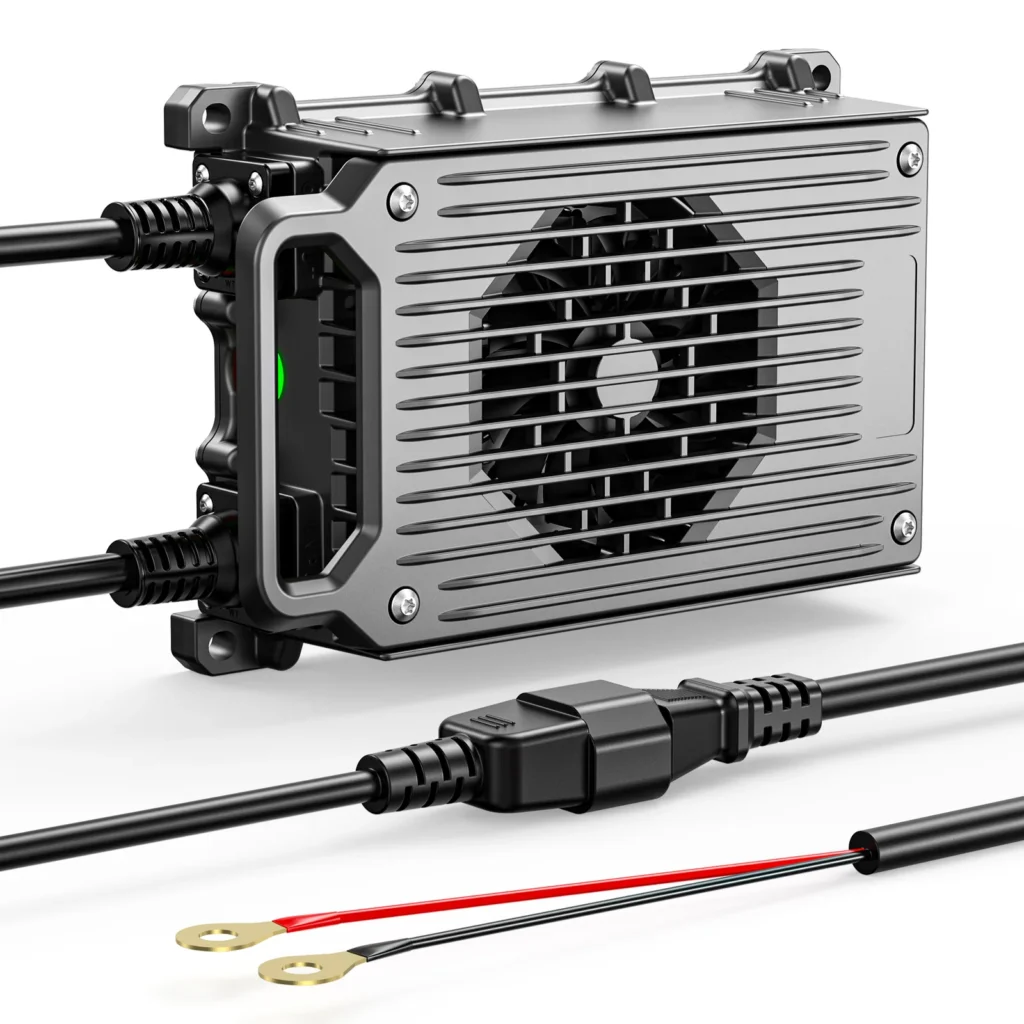

The BATCHG4815 is a built-in charger with an integrated cable, while the BATCHG4815T is a separate charger that comes with a blue adapter terminal.

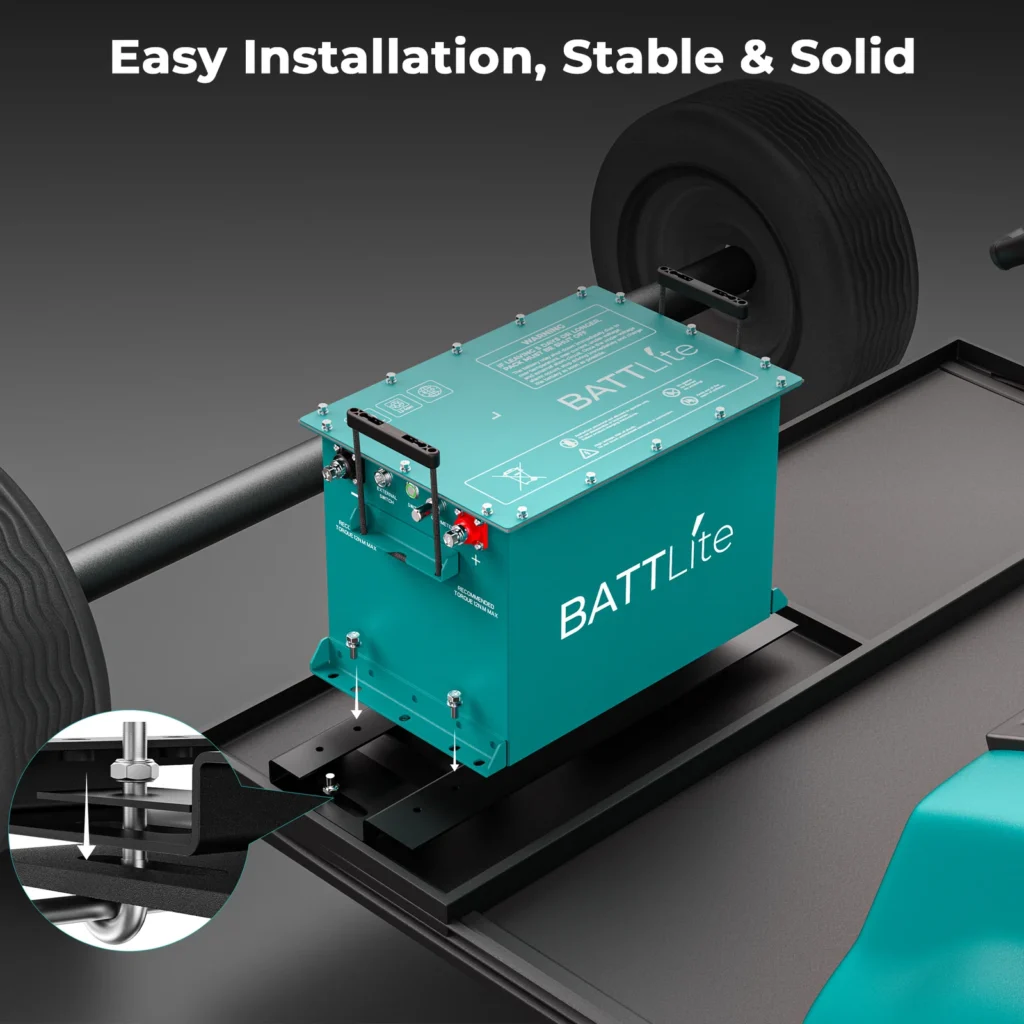

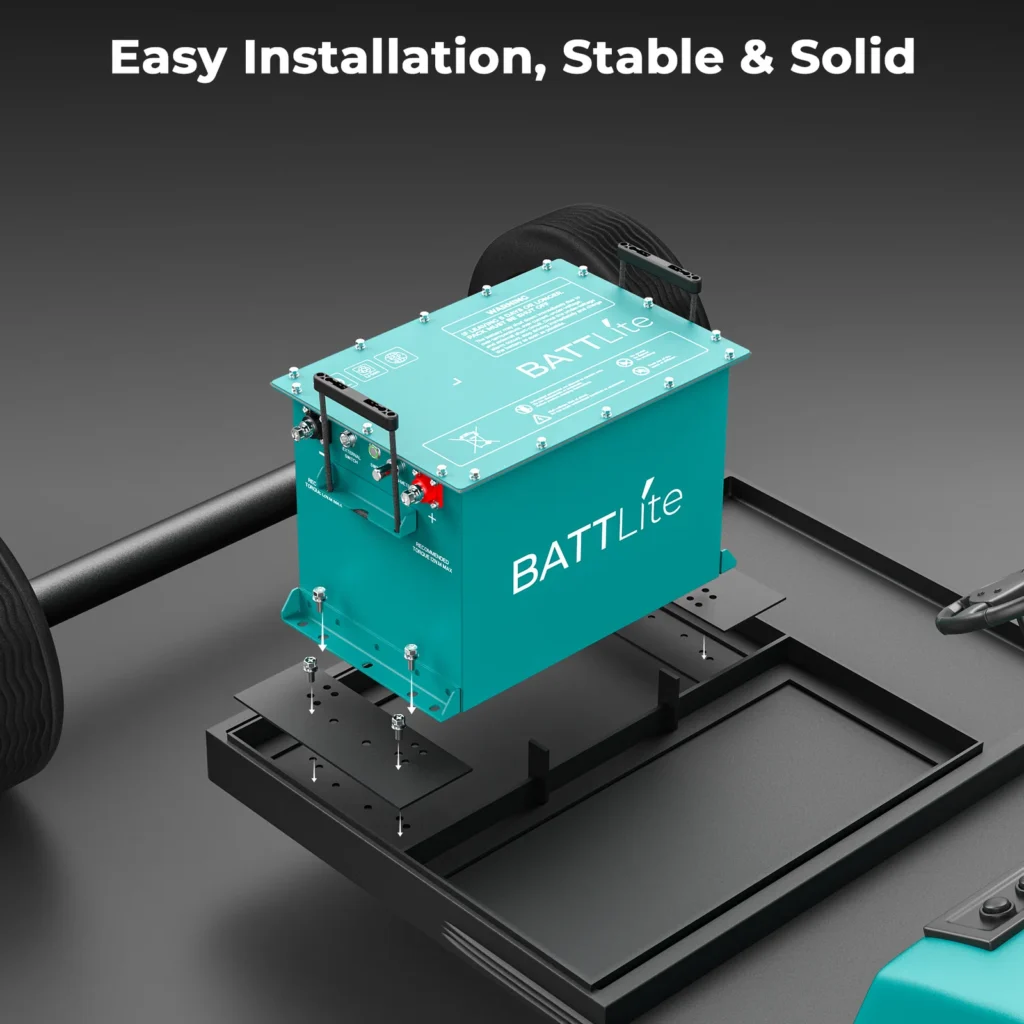

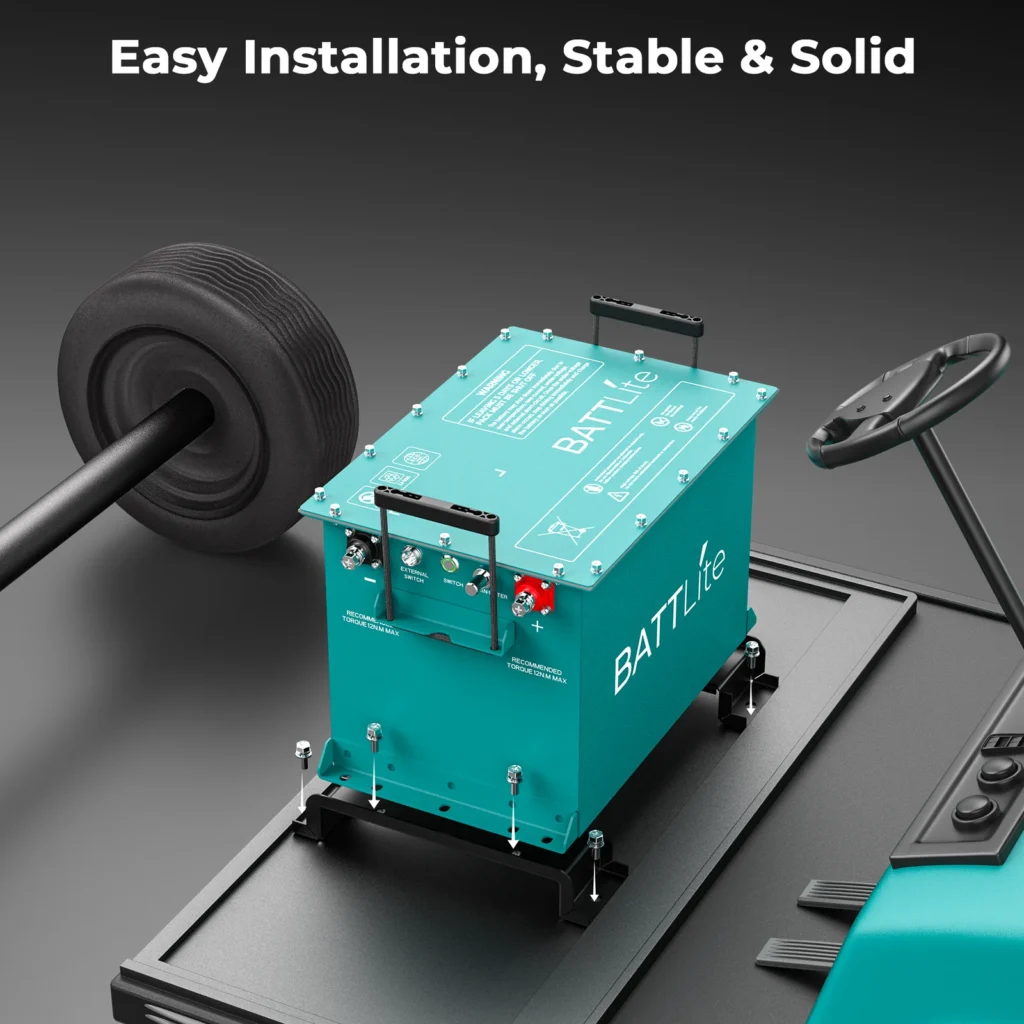

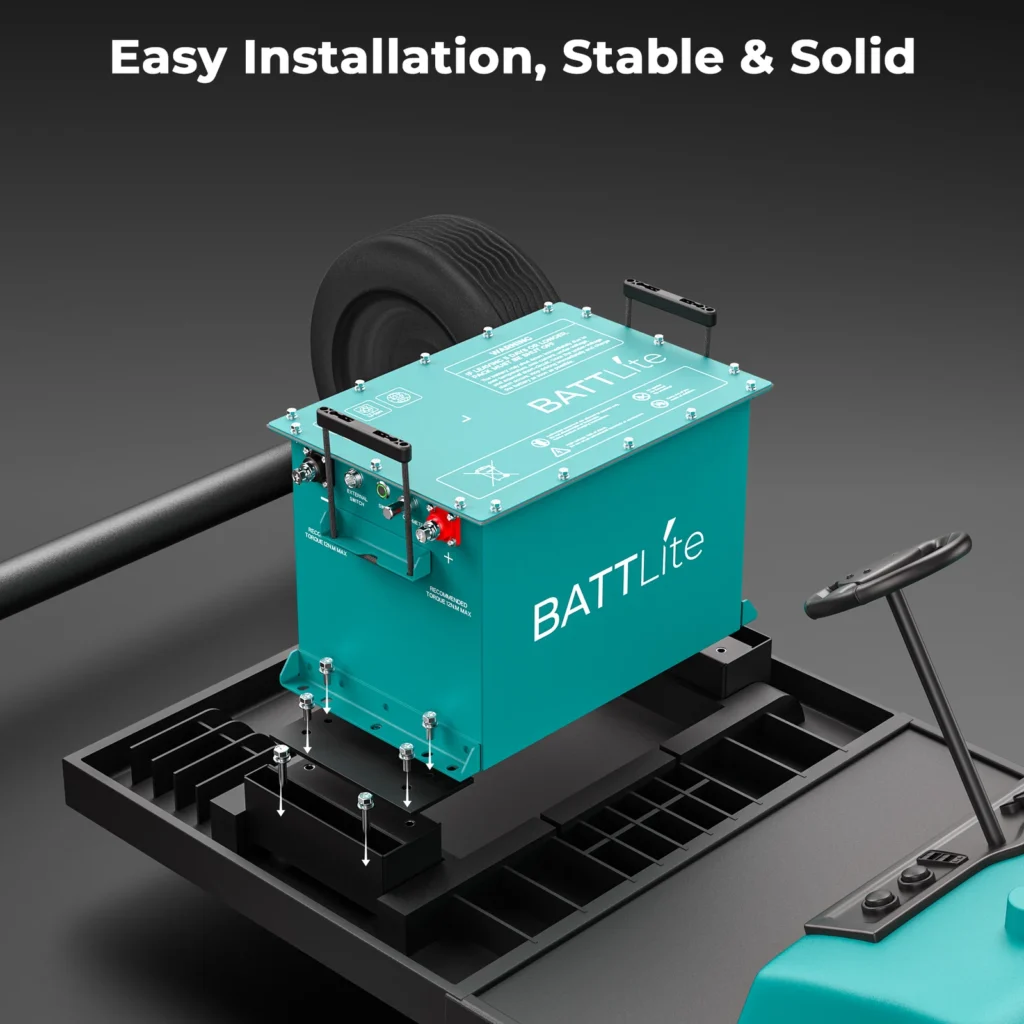

Yes, it can be installed inside the golf car’s battery compartment and permanently connected to the battery.
The indicator lights show the following statuses:
1. Charging: Green light flickers.
2. Full: Green light is solid.
3. Empty Load/No Battery Detected: Green and red lights alternate flashing.
